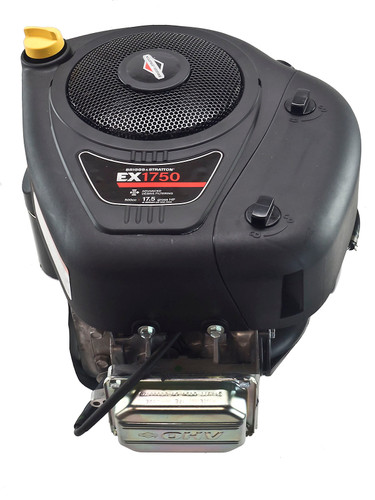

17.5hp Intek OHV, Vertical, Electric Start, Fits John Deere STX30, STX38, STX46, Conversion Kit Briggs & Stratton Engine

In Stock:4

Standard Shipping Charge: $64.99
(Charge for continental US. Other options at checkout.)

Item Specifications

Item Specifications

  • 17.5hp
  • Intek I/C
  • Anti Vibration System
  • Complete Engine Repower Kit
  • Sleeved Bore: Yes
  • Mounting: Vertical
  • Electric Start: Electric Start
  • Alternator: 9 Amp
  • Oil Capacity: 1-1/2 Quart
  • Oil type: Synthetic 5W-30, 10W-30
  • Fuel Pump: Yes
  • Shaft Size: 1"Dx3-5/32"L
  • Muffler: Included
  • Length: 12.5"
  • Height: 17.5"
  • Width: 16.1"
  • Shipping Rate Weight: 83.5
  • Product Condition: New
  • Warranty: 2-Year Manufacturer's Warranty

Notes and Warnings
  • The engine model number may vary! This engine comes Pre-wired to match the original wiring harness
  • The gross power rating is measured in accordance with SAE J1995 at 3600 rpm (without the muffler and air filter in place). Torque values are derived at 2600 rpm. Actual power output for the engine installed in the final machine will vary depending on numerous factors, including the operating speed of the engine in application, environmental conditions, maintenance, and other variables.
  • Small Engine Warehouse has designed and assembled each engine kit to match as closely as possible to the original installation. However, some adapting during installation should be expected.

Fits These Models
  • John Deere STX10,STX30,STX38,STX46
